Gigabyte H810M K DDR5 M-ATX Motherboard
Gigabyte H810M K DDR5 M-ATX Motherboard - Image 2
Gigabyte H810M K DDR5 M-ATX Motherboard - Image 3
Gigabyte H810M K DDR5 M-ATX Motherboard - Image 4

Gigabyte H810M K DDR5 M-ATX Motherboard

SKU: H810M-K

Original price was: ₹17,000.00.Current price is: ₹7,925.00.

Add to compare
Add to wishlist
16 People watching this product now!

Payment Methods:

Features:
H810M K
Supports Intel Core Ultra processors (Series 2)
Hybrid 3+1+2 phases VRM solution
EZ-Latch: PCIe x16 Slot with Quick Release Design
Friendly UI: Multi-Theme and Q-Flash Auto Scan in BIOS and SW
Next Generation Storage: PCIe 4.0 x4 M.2 Connectors
Fast Networking: GbE LAN
Extended Connectivity: HDMI, DisplayPort
Durable Performance
GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
Hybrid VRM Design
The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability.
PCIe 4.0 Hardware Design
Featuring PCIe 4.0 x16 slot and PCIe 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 4.0 devices to provide the superior performance.

Gigabyte H810M K DDR5 M-ATX Motherboard Specifications

Platform INTEL
Socket LGA1851
Cpu Type Core Ultra
Chipset H810
Memory Speed up to 6400
Max Memory Support 128 GB
Supported Memory Type DDR5
Channel Supported Dual Channel
Memory Feature Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Graphics Port 1 x DisplayPort,1 x HDMI
Expansion Slots CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

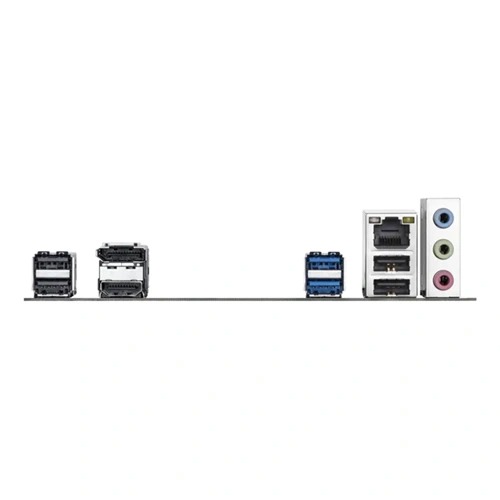

Back Panel I/O Ports 1 x DisplayPort (Note)
1 x HDMI port (Note)
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Internal I/O Connector 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
Form Factor Micro-ATX
Warranty 3 Years
Note Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only
