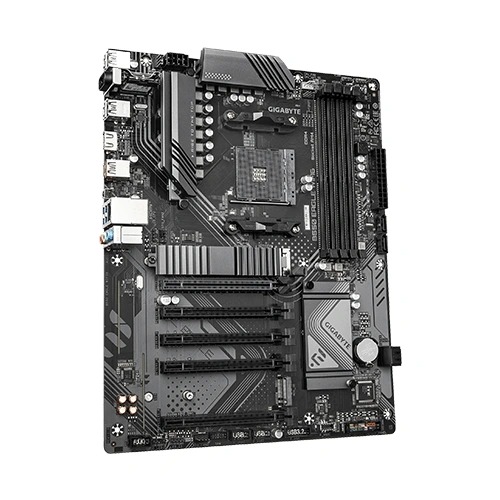

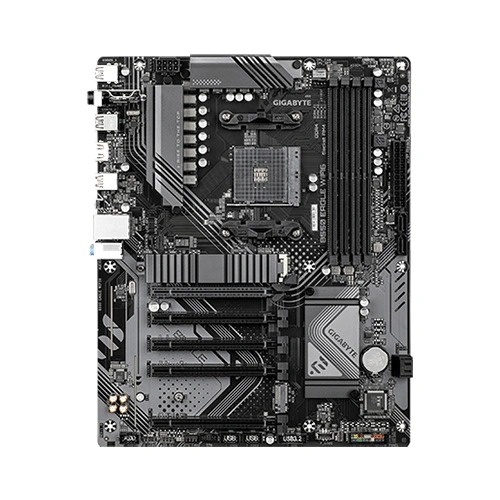

Gigabyte B550 Eagle WiFi6 ATX Motherboard
Original price was: ₹22,550.00.₹14,650.00Current price is: ₹14,650.00.
Payment Methods:
Features:
AMD Socket AM4: Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors
Digital twin 10+3 phases VRM solution
Dual Channel DDR4: 4*DIMMs
EZ-Latch: PCIe slots with Quick Release Design
Ultra-Fast Storage: 2*M.2 slots, including PCIe 4.0 x1
Efficient Thermal: VRM Thermal Armor Advanced
Fast Networking: GbE LAN & Wi-Fi 6
Extended Connectivity: HDMI
PCIe UD Slot: PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Infinite Memory Performance
EAGLE motherboards boost DDR4 memory performance and offer top-notch compatibility using various advanced methods.
Digital Twin VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.
10 VCORE Phases
Unlock the full power of your multi-core CPU for unmatched performance.
3 SOC Phase
Optimized for integrated GPU performance and memory management within the CPU.
Comprehensive Thermal
Advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.
All-round Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.
Born from Ultra Durable
Technology embodies our commitment to excellence, providing gamers with a platform that’s not only powerful but also built for longevity and reliability. EAGLE series motherboards are engineered to endure and excel.
Gigabyte B550 Eagle WiFi6 ATX Motherboard Specifications
| Platform | AMD |
| Socket | AM4 |
| Cpu Type | Ryzen 5000G,Ryzen 5000,Ryzen 4000G,Ryzen 3000G,Ryzen 3000 |
| Chipset | B550 |
| Memory Speed | up to 3200 |
| Max Memory Support | 128 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on Visit Brand website for more information.) |
| Graphics Port | 1 x HDMI port |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 5000/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4) |
| Wireless Networking | WiFi 6,Bluetooth 5.0 |

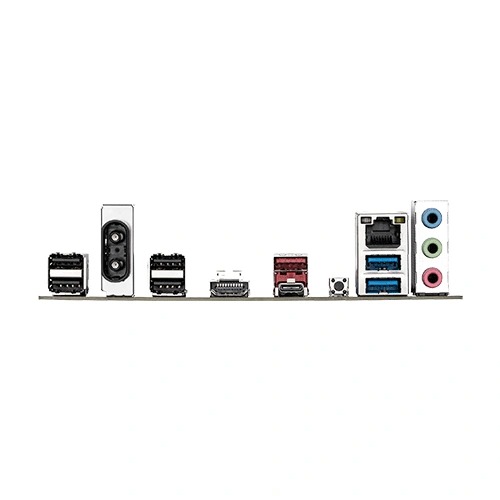

| Back Panel I/O Ports | 4 x USB 2.0/1.1 ports 2 x antenna connectors (1T1R) 1 x HDMI port (Note) 1 x USB 3.2 Gen 2 Type-A (Note)/USB 3.2 Gen 1 port (red) 1 x USB Type-C port, with USB 3.2 Gen 1 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 3 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper |
| Form Factor | ATX |
| Warranty | 3 Years |
| Note | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
