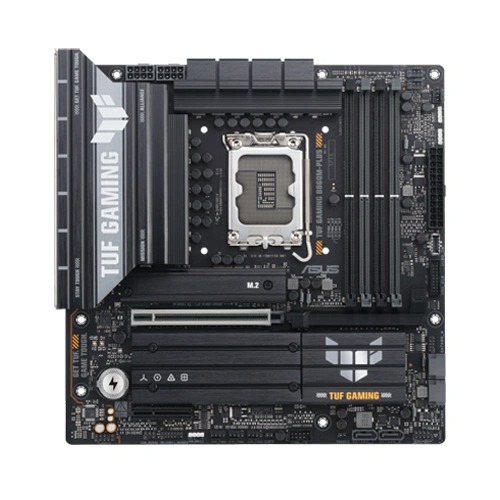

ASUS TUF Gaming B860M-Plus DDR5 M-ATX Motherboard
Original price was: ₹26,000.00.₹21,230.00Current price is: ₹21,230.00.
Asus Prime B550M-A WIFI II M-ATX Motherboard
Original price was: ₹16,999.00.₹13,100.00Current price is: ₹13,100.00.
-42%

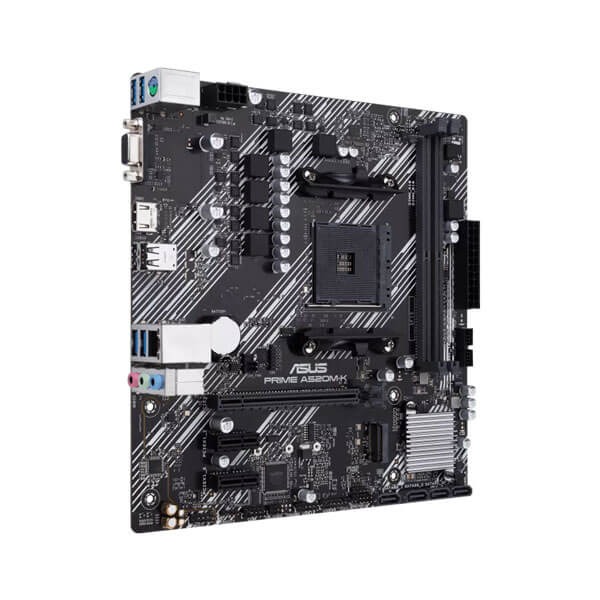

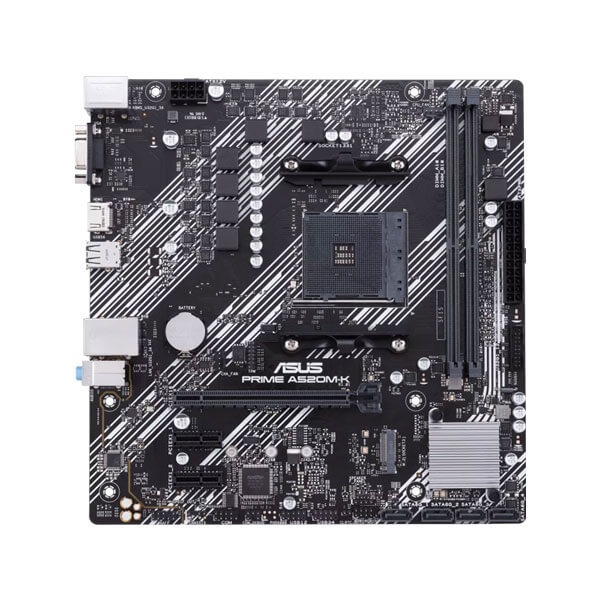

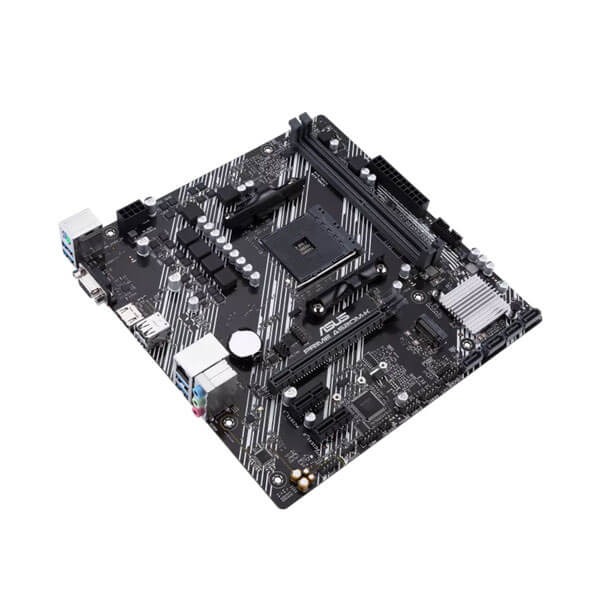

Asus Prime A520M-K/CSM M-ATX Motherboard
Original price was: ₹10,000.00.₹5,800.00Current price is: ₹5,800.00.
20
People watching this product now!
Payment Methods:
Features:
ATX motherboard with M.2 support, 1 Gb Ethernet, HDMI/D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 Type-A
AMD AM4 socket: Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Comprehensive cooling: PCH heatsink and Fan Xpert
Ultrafast connectivity: M.2 support, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
5X Protection III: Multiple hardware safeguards for all-around system protection
Asus Prime A520M-K/CSM M-ATX Motherboard Specifications
| Platform | AMD |
| Socket | AM4 |
| Cpu Type | Ryzen 5000, Ryzen 5000-G, Ryzen 4000-G, Ryzen 3000, Ryzen 3000-G |
| Chipset | A520 |
| Memory Speed | up to 4866 |
| Max Memory Support | 64 GB |
| Supported Memory Type | DDR4 |
| Channel Supported | Dual Channel |
| Memory Feature | Un-buffered Memory Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU |
| Graphics Port | 1 x HDMI 2.1 |
| Expansion Slots | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors AMD A520 Chipset 2 x PCIe 3.0 x1 1 x PCIe 3.0 x16 (x16 mode) |
| Back Panel I/O Ports | 4 x USB 3.2 Gen 1 (blue) Type-A 1 x PS/2 keyboard/mouse combo port(s) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 2.0 3 x Audio jack(s) |
| Internal I/O Connector | 1 x COM port header 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector |
| Form Factor | Micro-ATX |
| Warranty | 3 Years |
| Note | Features, Price and Specifications are subject to change without notice. Images used for Representation Purpose Only |
Reviews
Clear filtersThere are no reviews yet.
