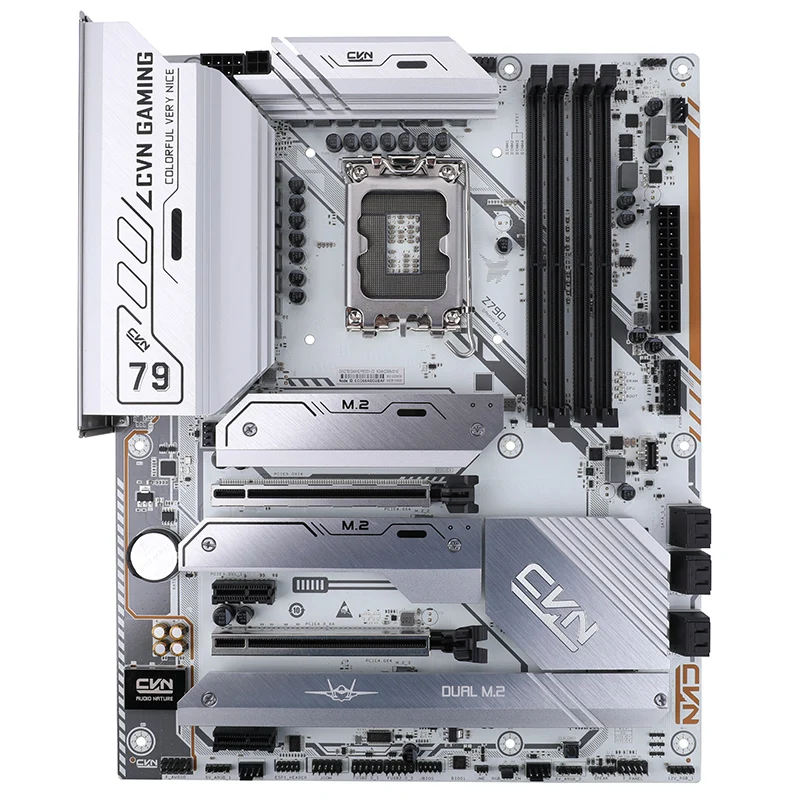

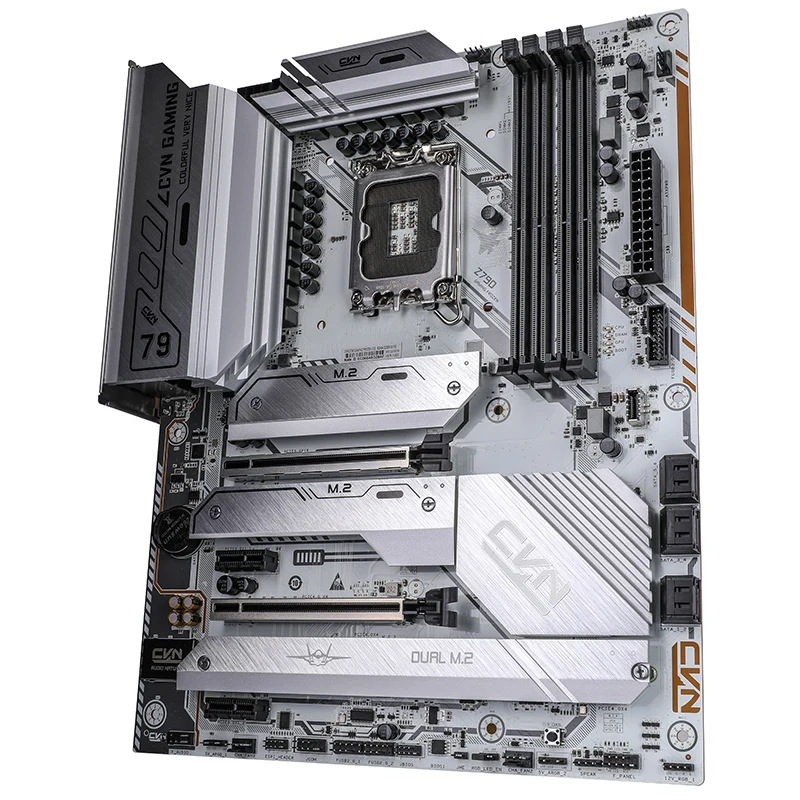

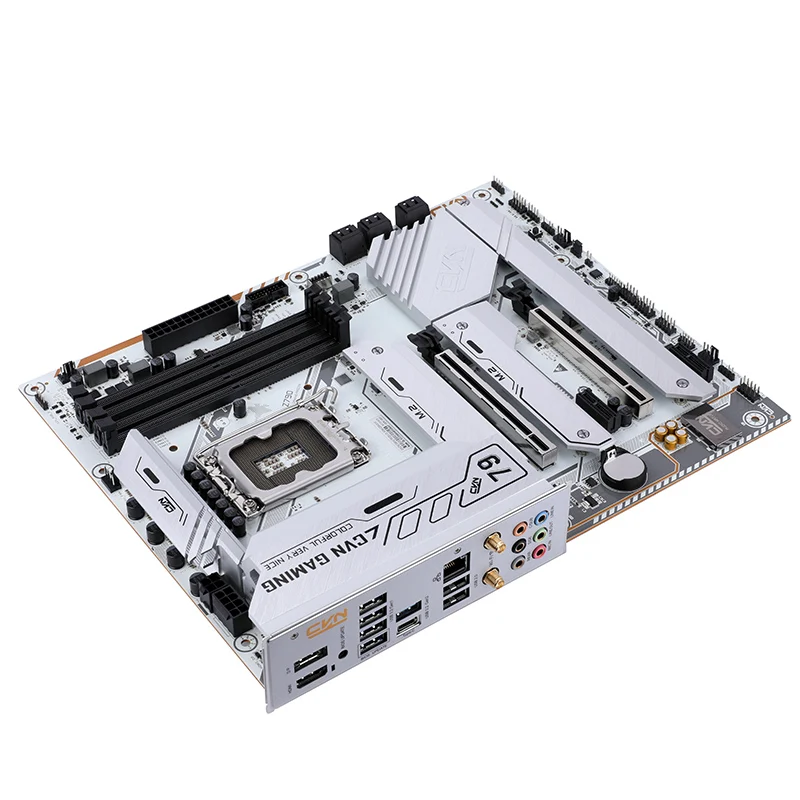

Colorful CVN Z790 GAMING FROZEN V20 Motherboard
Original price was: ₹1,200.00.₹1,000.00Current price is: ₹1,000.00.
Payment Methods:
The CVN Z790-AF-V20, a premium ATX motherboard engineered for Intel 14th, 13th, and 12th Gen processors. Featuring the powerful Intel Z790 chipset and LGA 1700 socket, this board is built for enthusiasts and gamers. It supports up to 192GB of high-speed DDR5 memory in a dual-channel configuration with Intel XMP 3.0 for easy overclocking. Unlock next-generation speeds with a PCIe 5.0 x16 slot for your graphics card and multiple M.2 slots for lightning-fast storage. The comprehensive I/O panel includes USB 3.2 Gen 2×2 Type-C, 2.5Gb LAN, and Wi-Fi 6E for superior connectivity. Backed by a 3-year warranty, the CVN Z790-AF-V20 provides the stability and features you need for a high-end PC build.
| Platform |
Intel |
|---|---|
| Socket |
LGA 1700 |
| Cpu Type |
Supports 14th ,13th & 12th Gen Intel® Core™ ,Pentium® Gold and Celeron® Processors |
| Chipset |
Intel® Z790 Chipset |
| Memory Speed |
DDR5 7600+(OC) / 7200(OC) / 6800(OC) / 6400(OC) / 6000(OC) / 5600 / 5200 / 4800 MT/s |
| Max Memory Support |
192 GB (4 x 48GB DIMM Modules) |
| Supported Memory Type |
DDR5 SDRAM |
| Dual Channel Memory Architecture |
Memory Feature |
| Intel® Extreme Memory Profile (XMP) 3.0 Support On-Die ECC Support OptiMem II technology for improved signal integrity |
Graphics Port |
| 1 x HDMI™ 2.1 Port 1 x DisplayPort™ 1.4 Port |
Expansion Slots |
| 1 x PCIe 5.0 x16 slot 1 x PCIe 4.0 x16 slot (runs at x4 mode) 2 x PCIe 4.0 x1 slots |
Back Panel I/O Ports |
| 1 x USB 3.2 Gen 2x2 Type-C® port (20Gbps) 3 x USB 3.2 Gen 2 Type-A ports (10Gbps) 4 x USB 3.2 Gen 1 Type-A ports (5Gbps) 1 x HDMI™ Port 1 x DisplayPort™ 1 x 2.5Gb Ethernet Port 1 x Wi-Fi 6E Module (Intel AX211) 5 x Audio Jacks 1 x Optical S/PDIF Out 1 x BIOS FlashBack™ Button |
Internal I/O Connector |
| 1 x 24-pin Main Power Connector 1 x 8-pin +12V CPU Power Connector 1 x 4-pin +12V CPU Power Connector 1 x USB 3.2 Gen 2 Type-C® Front Panel Connector 1 x USB 3.2 Gen 1 Header (supports 2 additional USB ports) 2 x USB 2.0 Headers (support 4 additional USB ports) 4 x M.2 Slots (Key M) 4 x SATA 6Gb/s Connectors 1 x CPU Fan Header 3 x Chassis Fan Headers 1 x AIO Pump Header 1 x Addressable Gen 2 RGB Header 1 x Aura RGB Header 1 x Front Panel Audio Connector 1 x System Panel Connector |
Form Factor |
| ATX (12 inch x 9.6 inch / 30.5 cm x 24.4 cm) |
Warranty |
| 3YEAR |
Note |
Specification
