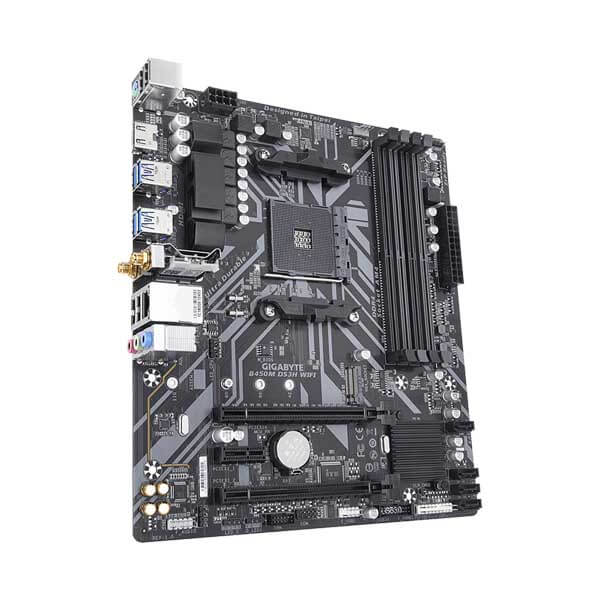

Gigabyte B450M DS3H WiFi Motherboard
Original price was: ₹10,370.00.₹8,200.00Current price is: ₹8,200.00.
Payment Methods:
Features:
Supports AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Intel Dual Band 802.11ac WIFI & BT 4.2
Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
High Quality Audio Capacitors and Audio Noise Guard Design
RGB FUSION 2.0 with Addressable RGB & RGB LED Strips Support
Realtek Gigabit LAN with cFosSpeed Internet Accelerator Software
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
APP Center Including EasyTune and Cloud Station Utilities
CEC 2019 Ready, Save Power with a Simple Click
| Feature | Specification |
|---|---|
| Model | B450M DS3H WIFI |
| CPU Support | AM4 Socket: Supports AMD Ryzen 5000 / 5000 G-Series / 3rd Gen Ryzen / 2nd Gen Ryzen / 1st Gen Ryzen / Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors |
| Chipset | AMD B450 |
| Memory | 4 x DDR4 DIMM (Up to 128GB), Dual Channel, Supports DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz, XMP Support, ECC & Non-ECC Support |
| Onboard Graphics | 1 x HDMI (Max 4096x2160@60Hz), HDMI 2.0, HDCP 2.2, Max Shared Memory 16GB |
| Audio | Realtek® HD Audio CODEC, 2/4/5.1/7.1-Channel, S/PDIF Out Support |
| LAN | Realtek® GbE LAN (10/100/1000 Mbps) |
| Wireless | AzureWave Wi-Fi (RTL8821CE), 802.11a/b/g/n/ac Dual Band 2.4/5GHz, Bluetooth 5.0 |
| Expansion Slots | 1 x PCIe 3.0 x16, 1 x PCIe x16 (x1 mode), 1 x PCIe x1 (PCIe 2.0) |
| Storage | 1 x M.2 (2242/2260/2280/22110 SATA & PCIe x4/x2), 4 x SATA 6Gb/s, RAID 0/1/10 |
| USB (Rear) | 4 x USB 3.1 Gen1, 4 x USB 2.0 |
| USB (Internal) | 2 x USB 3.1 Gen1 Header, 2 x USB 2.0 Headers |
| Back Panel | PS/2, HDMI, 4 x USB 3.1, 4 x USB 2.0, 2 x SMA Antenna, RJ-45 LAN, 3 x Audio Jacks |
| Internal Connectors | 24-pin ATX, 8-pin CPU, Fan Headers, RGB Headers, TPM Header, Serial Header, Clear CMOS |
| BIOS | 128Mbit AMI UEFI BIOS, Q-Flash Support |
| Operating System | Windows 10 64-bit / Windows 7 64-bit |
| Form Factor | Micro ATX (24.4cm x 21.5cm) |
| Warranty | 3 Years |
| Note | Specifications and features are subject to change without notice. Image for reference only. |
